Easy operation. High performance.

Categories: , Tags: ,

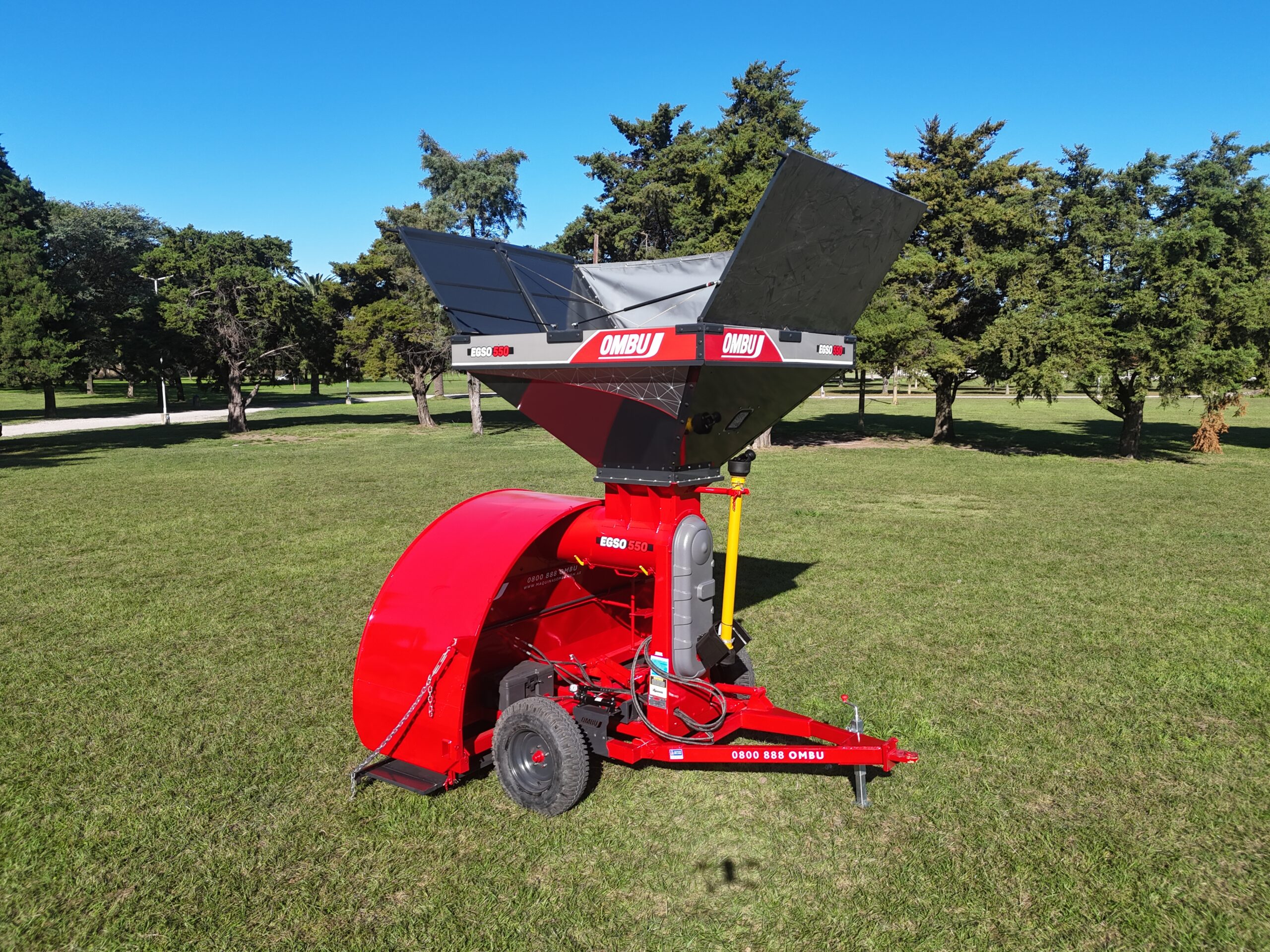

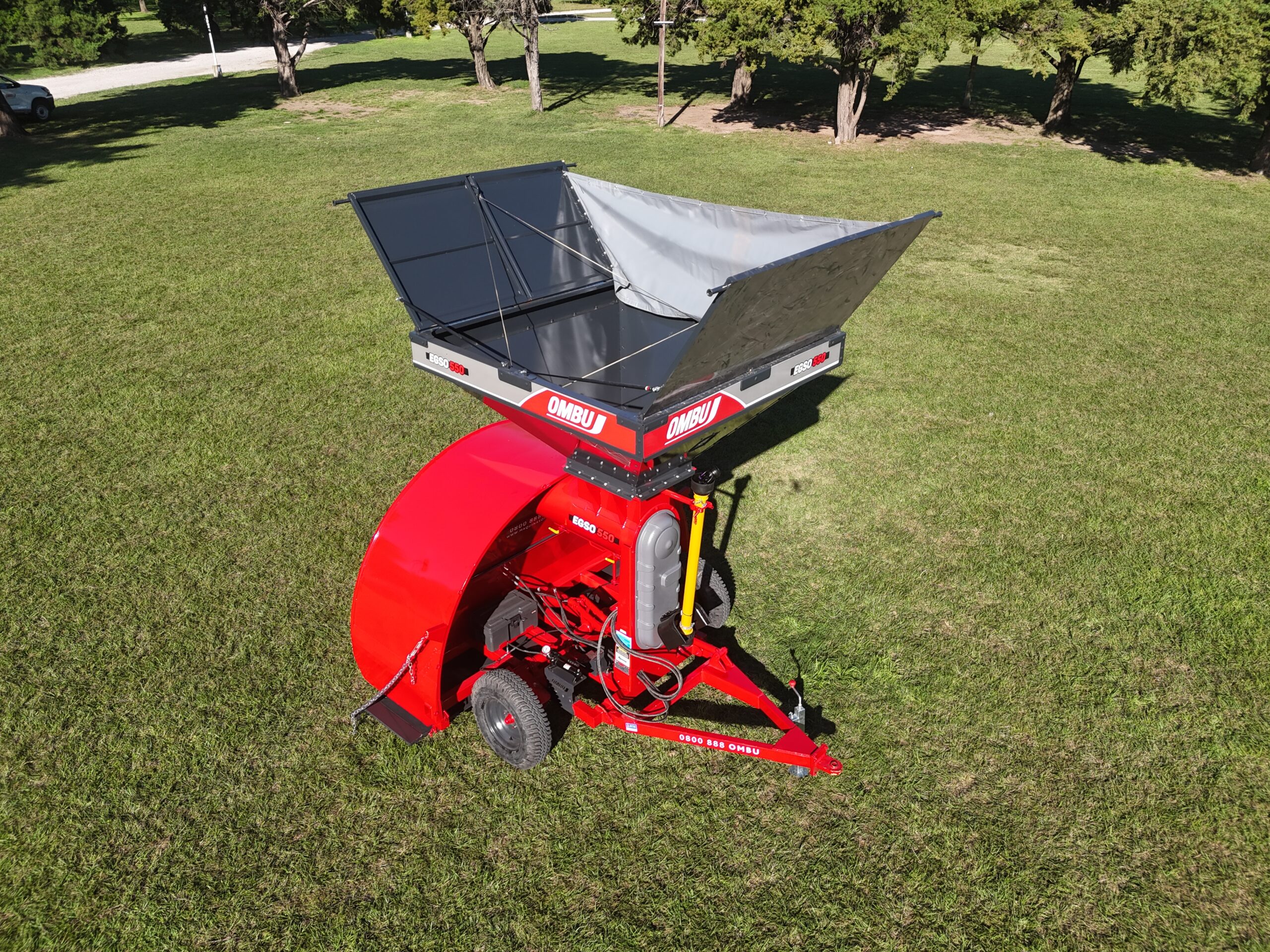

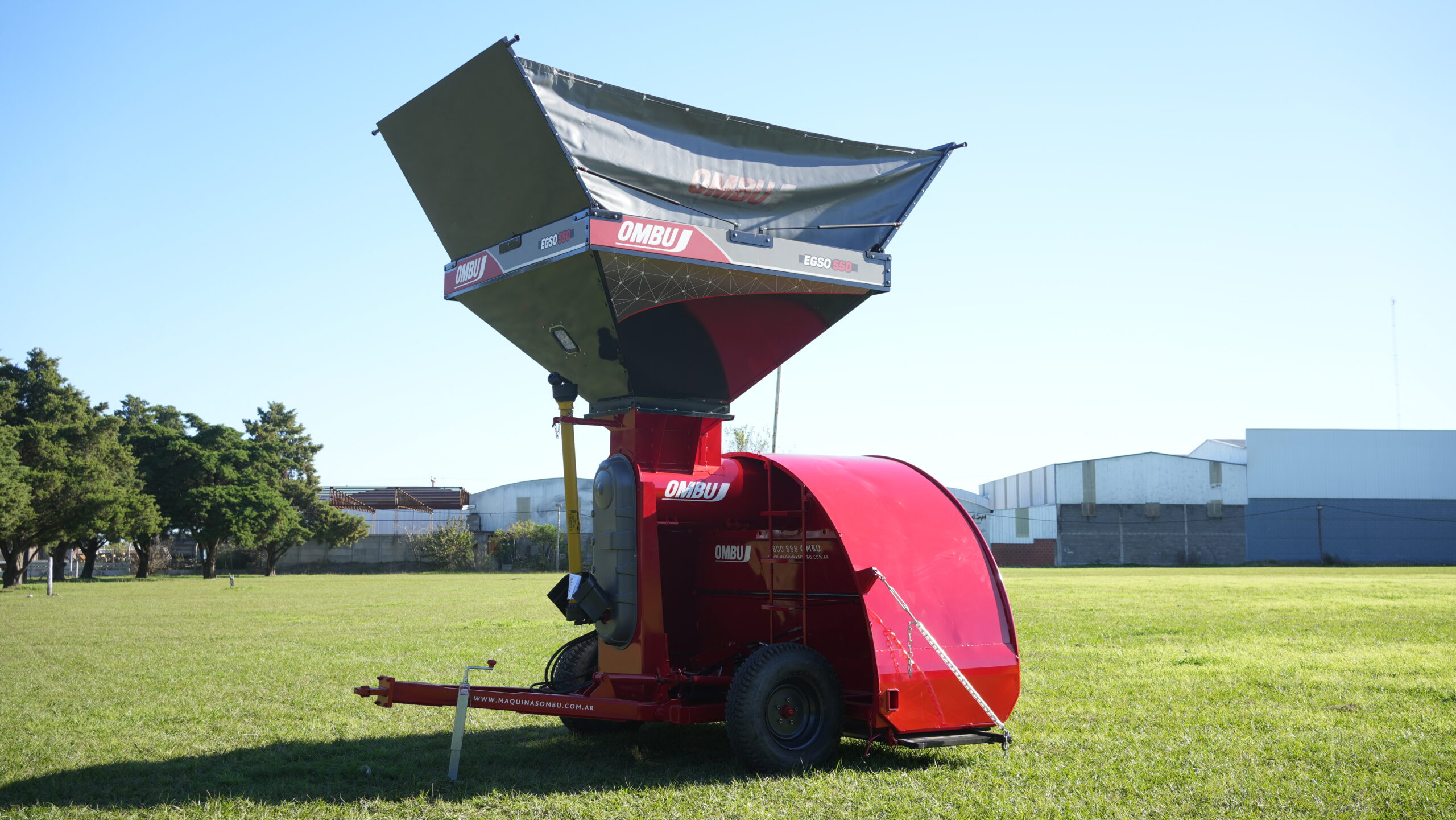

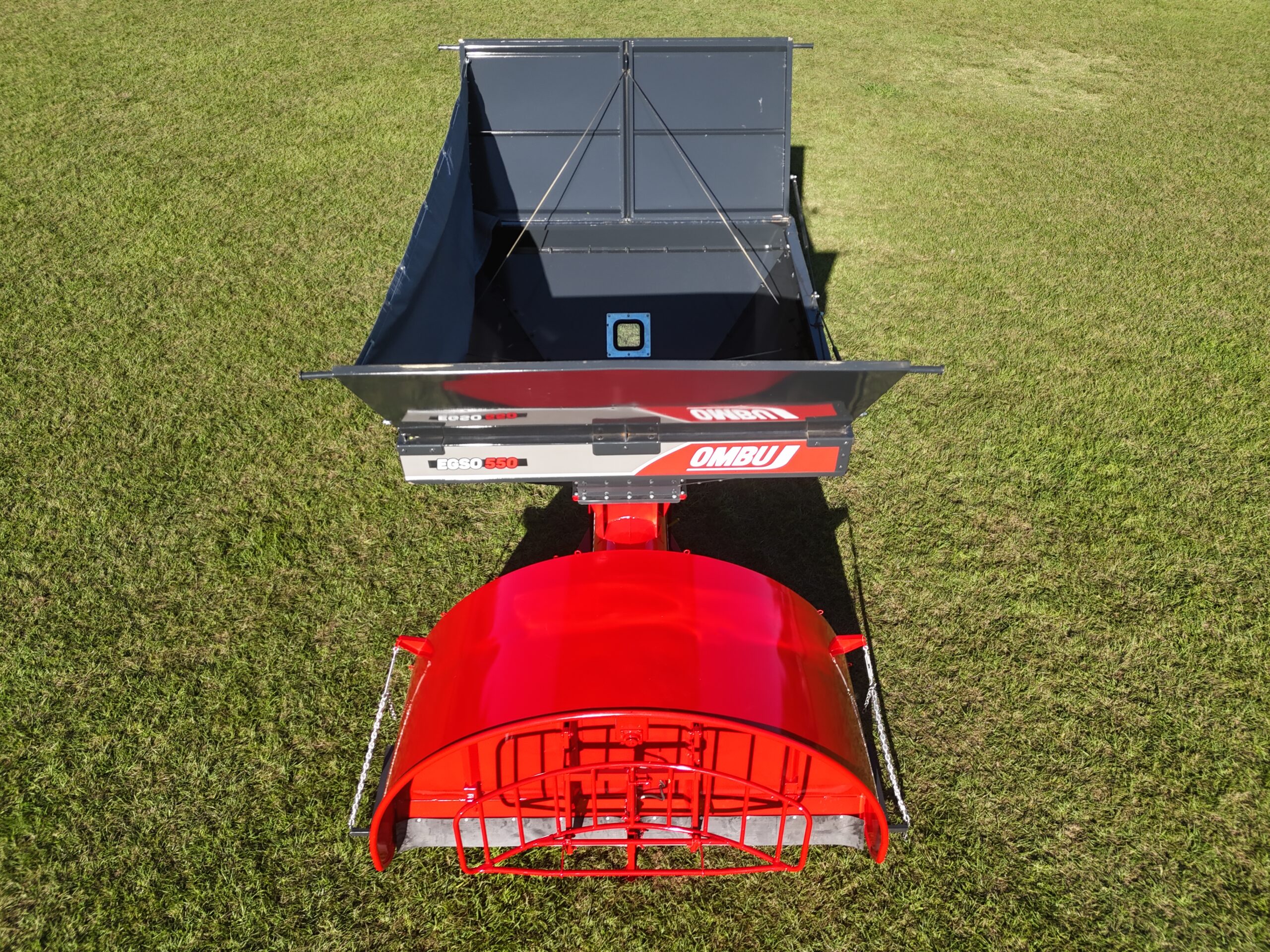

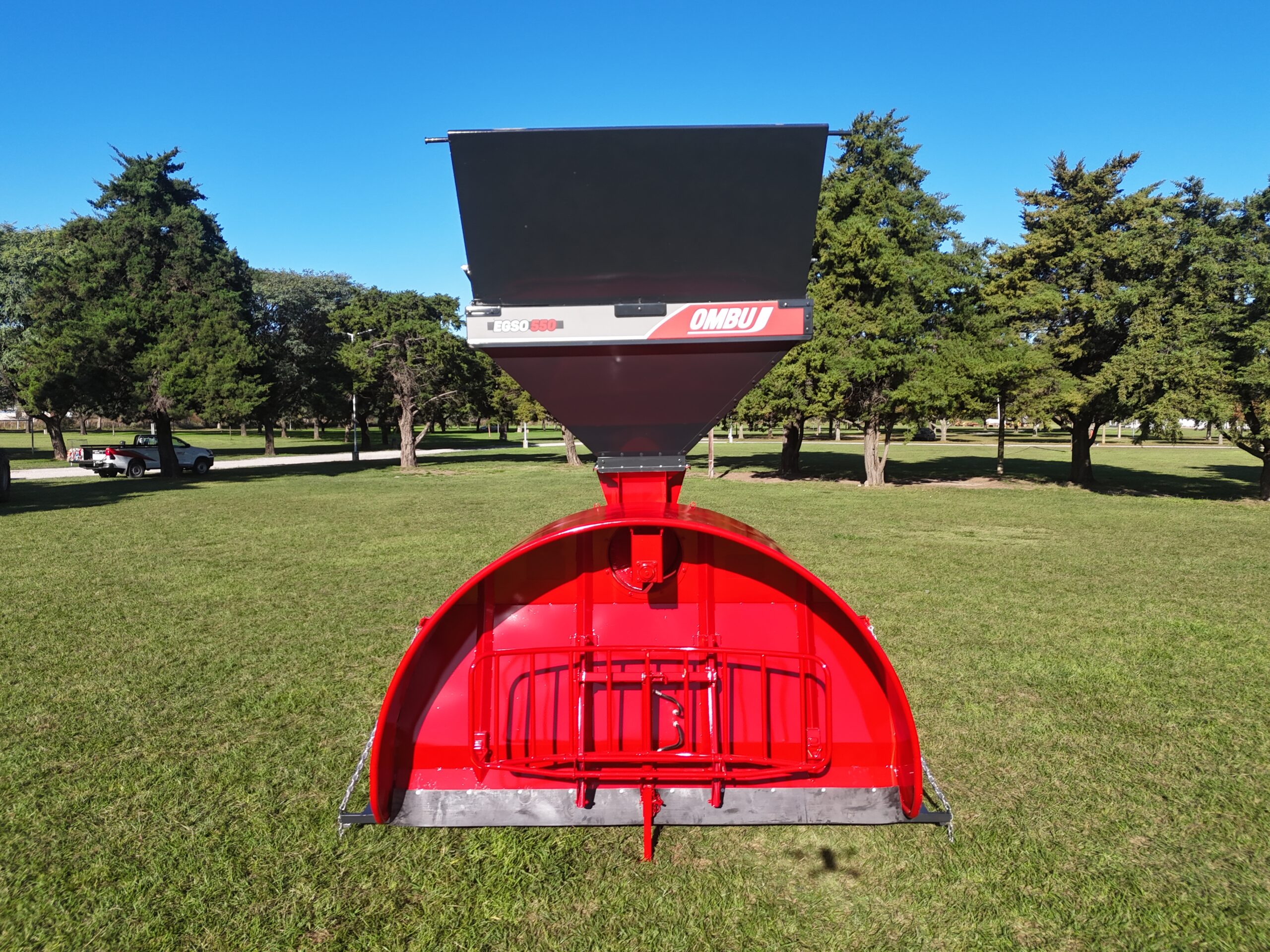

Bag size: 9 feet. Bagging system: through horizontal auger with hardened material applied to bring long lasting. Diameter of the tube: 480mm including folding bottom for cleaning or maintenance. Bagging capacity: 550 Tons per hour. Potency required: 65/80HP. Driving: 540 RPM PTO shaft. Brake system: manually operated by means of a screw- shoe set (optional: hydraulic discs brakes). Tire size: 11L x 16”. Transmission safety: fuse bolts applied on the PTO shaft’s clutch, glass fiber covers made under IRAM 8076-0 Norms. Transmission: by chain. Height regulation: by means a parallel system operated through a hydraulic cylinder. Upper hopper: has a capacity of 1.800 litres and upper covers for climate protection and side tarp avoid wind effects. Bag cradle: made with pipes and connected to a manually operated winch.
